直流微型减速电机MR752 63 71 B14
|
型号
|
减速比
|
长度
mm |
空载
转速
min-1 |
S 1
转速
min-1 |
S1
扭矩
Nm |
S2
转速
min-1 |
S2
扭矩
Nm |
最大
扭矩
Nm |
最大
电流
A |
|
MR 752 63 1/4
|
1/4
|
151
|
680
|
530
|
0.29
|
340
|
0.72
|
2
|
7
|
|
MR 752 63 1/6
|
1/6
|
151
|
453
|
353
|
0.43
|
226.7
|
1.1
|
3
|
7
|
|
MR 752 63 1/16
|
1/16
|
171
|
170
|
132.5
|
1.03
|
85
|
2.6
|
7,2
|
7
|
|
MR 752 63 1/24
|
1/24
|
171
|
113.3
|
88.3
|
1.54
|
56.7
|
3.9
|
10,8
|
7
|
|
MR 752 63 1/36
|
1/36
|
171
|
75.6
|
58.9
|
2.3
|
37.8
|
5.8
|
16,2
|
7
|
|
MR 752 63 1/64
|
1/64
|
191
|
42.5
|
33.1
|
3.5
|
21.3
|
8.7
|
24.3
|
7
|
|
MR 752 63 1/96
|
1/96
|
191
|
28.3
|
22.1
|
5.3
|
14.2
|
13.2
|
37
|
7
|
|
MR75263 1/144
|
1/144
|
191
|
18.9
|
14.7
|
8.2
|
9.4
|
20.4
|
57
|
7
|
|
MR75263 1/216
|
1/216
|
191
|
12.6
|
9.8
|
12.3
|
6.3
|
30.8
|
80
|
7
|

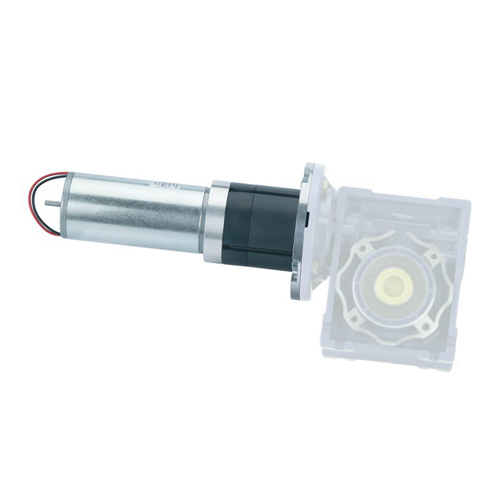

Gearmotor with MEC 71 B 14 flange to be assembled with standard worm screw or others.
Length "L" of the gearmotor as a funtion of reduction and outlet number of revolution with the standard motor
752 40 output W 2900 Rpm loadness, 12/24 Vdc. Starting corrent 7 A.
Drivingshaft supported by self lubrificating bushings. Outlet shaft supported by two coupled screened bearings.
The motor and the reduction gear are both thrated for corrosion strength.
The motor has an electrical suppressor system for the CE standard.
Connecting 2 wire 0,75 x 200 mm.
* The rotation speed can change of ±10%.
The S1 load test was made using a 1,3 A corrent in the air with an increase of temperature of 70° C.
The S2 test was made using a 2,6 A corrent in the air with a 50% timing 5’ with an increase of temperature
of 80° C max.
The starting corrent (I max) cannot be maintained for more than 2".
Max forces which may act on the outlet shaft: Axial 30 kg, Radial 40 kg on the extremity of outlet shaft.
Possibility to apply other motor.
